Swift from Zero to Expert #13: Protocols

In the previous article we made our enums throwable by conforming them to one tiny protocol: Error. It had no methods, no properties — conforming to it was just a marker that said “a value of this type can be thrown.” That was your first protocol, and it hid the whole idea in plain sight. A protocol is a contract: it states what a type must be able to do, while staying completely silent about what that type is.

That separation is the point. Inheritance from #10 lets types share behavior only by sharing a superclass — a rigid, single-parent family tree that only classes can join. A protocol lets unrelated types — a struct, an enum, a class, even types you didn’t write — promise the same capability without sharing an ancestor. A Circle and a Country have nothing in common, yet both can promise “I have an area.” That promise is a protocol.

Protocol syntax: defining the contract

You define a protocol much like a type, with the protocol keyword:

protocol SomeProtocol {
    // protocol definition goes here
}

A type states that it adopts a protocol by writing the protocol’s name after the type’s name, separated by a colon — exactly the syntax you’ve used for class inheritance. Multiple protocols are separated by commas, and if a class has a superclass, the superclass comes first:

struct SomeStructure: FirstProtocol, AnotherProtocol {
    // structure definition goes here
}

class SomeClass: SomeSuperclass, FirstProtocol, AnotherProtocol {
    // class definition goes here
}

Property requirements

A protocol can require a conforming type to provide a property with a particular name and type. Crucially, it does not say whether that property is stored or computed — only its name, its type, and whether it must be gettable, or gettable and settable.

Property requirements are always written with var. You write { get set } for a read-write requirement and { get } for a read-only one:

protocol SomeProtocol {
    var mustBeSettable: Int { get set }
    var doesNotNeedToBeSettable: Int { get }
}

The rule is about minimums. A { get set } requirement can’t be satisfied by a let or a read-only computed property — the conformer must offer both. A { get } requirement is satisfied by any property, and it’s fine for that property to also be settable if that’s useful to you.

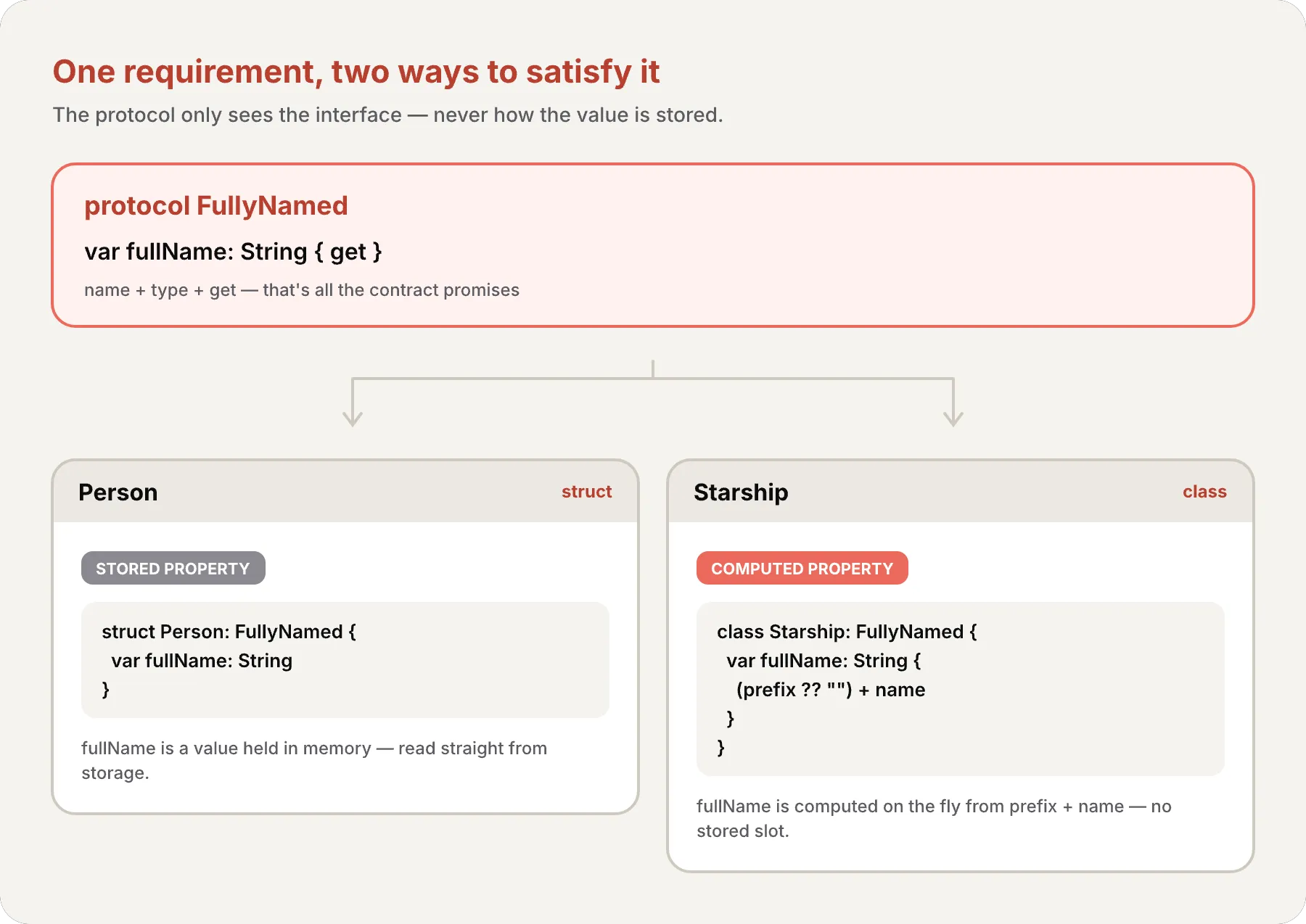

Here’s a protocol with one instance-property requirement:

protocol FullyNamed {
    var fullName: String { get }
}

A struct can satisfy fullName with a plain stored property:

struct Person: FullyNamed {
    var fullName: String
}
let john = Person(fullName: "John Appleseed")
// john.fullName is "John Appleseed"

…and a class can satisfy the same requirement with a computed property from #9 — the protocol never knew or cared about the difference:

class Starship: FullyNamed {
    var prefix: String?
    var name: String
    init(name: String, prefix: String? = nil) {
        self.name = name
        self.prefix = prefix
    }
    var fullName: String {
        return (prefix != nil ? prefix! + " " : "") + name
    }
}
var ncc1701 = Starship(name: "Enterprise", prefix: "USS")
// ncc1701.fullName is "USS Enterprise"

Method requirements

A protocol can require instance and type methods. You write them exactly like normal method declarations, but with no body and no braces — just the signature:

protocol RandomNumberGenerator {
    func random() -> Double
}

RandomNumberGenerator demands one method, random(), returning a Double. It says nothing about how the number is produced — that’s the conformer’s business. Here a class implements it as a linear congruential generator:

class LinearCongruentialGenerator: RandomNumberGenerator {
    var lastRandom = 42.0
    let m = 139968.0
    let a = 3877.0
    let c = 29573.0
    func random() -> Double {
        lastRandom = ((lastRandom * a + c)
            .truncatingRemainder(dividingBy: m))
        return lastRandom / m
    }
}

As with properties, type-method requirements are prefixed with static in the protocol. Default parameter values aren’t allowed in a protocol’s method requirements — the contract states the signature, not convenience defaults.

Mutating method requirements

A method on a value type — a struct or enum from #8 — that needs to change self must be marked mutating. When a protocol requires such a method, it carries the mutating keyword into the contract, so that value types are allowed to satisfy it:

protocol Togglable {
    mutating func toggle()
}

An enum can now conform and flip its own state:

enum OnOffSwitch: Togglable {
    case off, on
    mutating func toggle() {
        switch self {
        case .off:
            self = .on
        case .on:
            self = .off
        }
    }
}
var lightSwitch = OnOffSwitch.off
lightSwitch.toggle()
// lightSwitch is now equal to .on

Initializer requirements

A protocol can also require an initializer from #10 — again, just the signature, no body:

protocol SomeProtocol {
    init(someParameter: Int)
}

A class satisfying an initializer requirement must mark its implementation required. That word forces every subclass to also provide the initializer, so the entire class hierarchy keeps conforming:

class SomeClass: SomeProtocol {
    required init(someParameter: Int) {
        // initializer implementation goes here
    }
}

Protocols as types: the existential any

So far a protocol has been a checklist. But a protocol is also a type — you can use it where you’d use Int or String: as a variable’s type, a function parameter, an array’s element type. You met this already at the very end of #12, where Result { try f() } produced a Result<Int, any Error>, and we promised the any keyword would get its explanation here. This is it.

protocol Shape {
    func draw() -> String
}

struct VerticalShapes {
    var shapes: [any Shape]
    func draw() -> String {
        return shapes.map { $0.draw() }.joined(separator: "\n\n")
    }
}

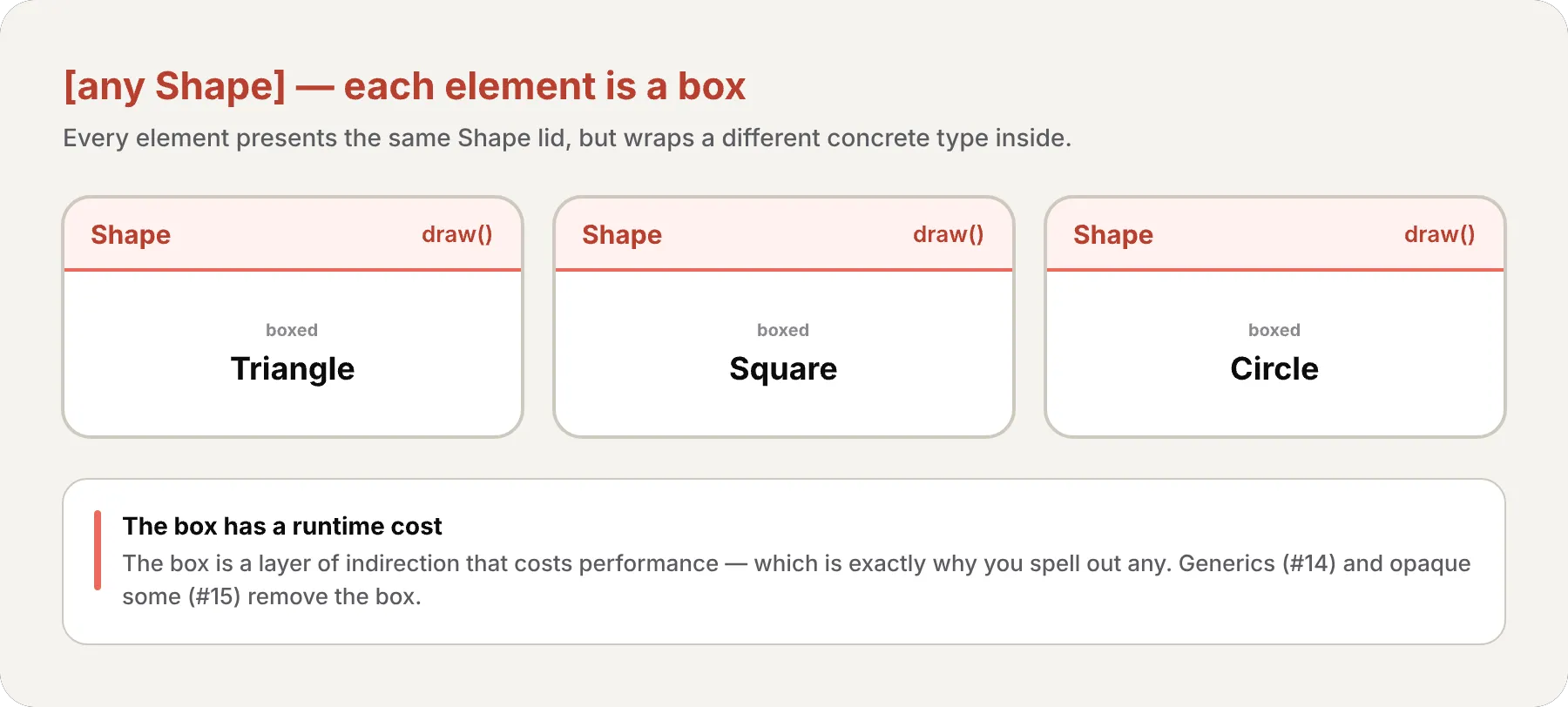

[any Shape] is an array whose elements can each be a different concrete type — a triangle here, a square there — as long as every one conforms to Shape. Because the box hides the concrete type, you may only touch what Shape itself promises: draw() is fine; a triangle’s size property is not, unless you cast back to the concrete type first.

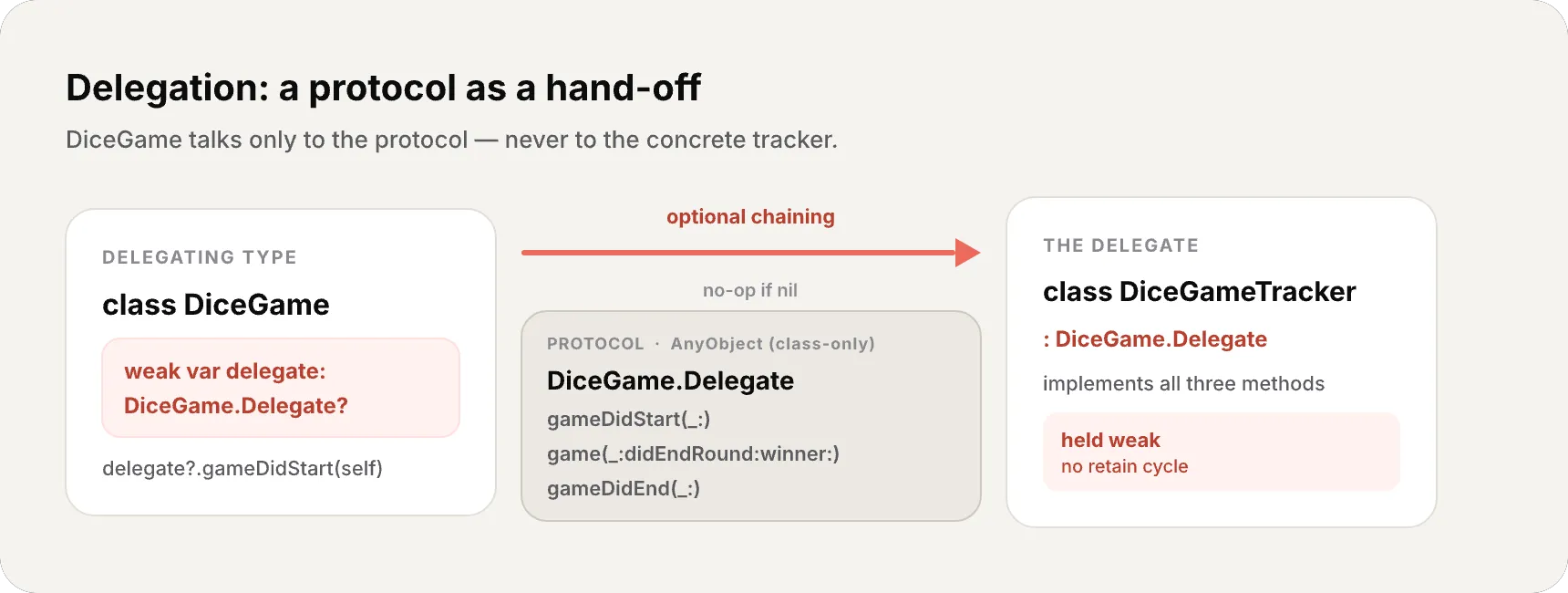

Delegation: a protocol as a hand-off

One of the oldest and most useful protocol patterns is delegation — a type handing off part of its job to another object that promises, via a protocol, to handle it.

Here a dice game reports its progress to a delegate. The game holds an optional delegate and calls back at key moments:

class DiceGame {
    let sides: Int
    let generator = LinearCongruentialGenerator()
    weak var delegate: Delegate?

    init(sides: Int) {
        self.sides = sides
    }

    func roll() -> Int {
        return Int(generator.random() * Double(sides)) + 1
    }

    func play(rounds: Int) {
        delegate?.gameDidStart(self)
        for round in 1...rounds {
            let player1 = roll()
            let player2 = roll()
            if player1 == player2 {
                delegate?.game(self, didEndRound: round, winner: nil)
            } else if player1 > player2 {
                delegate?.game(self, didEndRound: round, winner: 1)
            } else {
                delegate?.game(self, didEndRound: round, winner: 2)
            }
        }
        delegate?.gameDidEnd(self)
    }

    protocol Delegate: AnyObject {
        func gameDidStart(_ game: DiceGame)
        func game(_ game: DiceGame, didEndRound round: Int, winner: Int?)
        func gameDidEnd(_ game: DiceGame)
    }
}

Two patterns from earlier chapters carry the whole design. delegate is Delegate?, so each call goes through optional chaining from #11 — delegate?.gameDidStart(self). If nobody is listening, the call simply no-ops. And the delegate is a weak reference to avoid a retain cycle, which is exactly why the protocol inherits AnyObject — making it class-only (more on that below).

Any class can become a tracker by conforming:

class DiceGameTracker: DiceGame.Delegate {
    var playerScore1 = 0
    var playerScore2 = 0
    func gameDidStart(_ game: DiceGame) {
        playerScore1 = 0
        playerScore2 = 0
    }
    func game(_ game: DiceGame, didEndRound round: Int, winner: Int?) {
        switch winner {
        case 1: playerScore1 += 1
        case 2: playerScore2 += 1
        default: break
        }
    }
    func gameDidEnd(_ game: DiceGame) {
        if playerScore1 == playerScore2 {
            print("The game ended in a draw.")
        } else if playerScore1 > playerScore2 {
            print("Player 1 won!")
        } else {
            print("Player 2 won!")
        }
    }
}

let tracker = DiceGameTracker()
let game = DiceGame(sides: 6)
game.delegate = tracker
game.play(rounds: 3)

DiceGame never learns what kind of object tracker is. It only knows the contract — and that’s the whole power of delegation.

Adding conformance with an extension

You can make a type conform to a protocol in an extension, separately from its original declaration — even for a type whose source you don’t own. This is retroactive modeling: teaching Int, Array, or someone else’s type a new trick.

protocol TextRepresentable {
    var textualDescription: String { get }
}

extension Dice: TextRepresentable {
    var textualDescription: String {
        return "A \(sides)-sided dice"
    }
}

After this extension, every Dice — including ones created before the extension was written — is a TextRepresentable. The conformance applies to all existing and future instances.

Conditional conformance with where

A generic type can conform to a protocol only when its elements do. You express this with a where clause on the extension:

extension Array: TextRepresentable where Element: TextRepresentable {
    var textualDescription: String {
        let itemsAsText = self.map { $0.textualDescription }
        return "[" + itemsAsText.joined(separator: ", ") + "]"
    }
}

Here Element is the built-in generic name for whatever type the array holds — you’ll meet generics properly in #14. Now [Dice] is TextRepresentable (because Dice is), but [SomeRandomType] isn’t. The conformance is conditional on the element type.

Declaring adoption with an empty extension

If a type already meets every requirement but hasn’t said so, an empty extension makes the adoption official:

struct Hamster {
    var name: String
    var textualDescription: String {
        return "A hamster named \(name)"
    }
}
extension Hamster: TextRepresentable {}

Synthesized conformance: Equatable, Hashable, Comparable

Some conformances are so mechanical that Swift writes them for you. For Equatable, Hashable, and Comparable, you often just declare the conformance and stop — the compiler synthesizes the implementation.

Declare Equatable on a struct whose stored properties are all Equatable, and == is generated for you (comparing every property), along with a free !=:

struct Vector3D: Equatable {
    var x = 0.0, y = 0.0, z = 0.0
}

let a = Vector3D(x: 2.0, y: 3.0, z: 4.0)
let b = Vector3D(x: 2.0, y: 3.0, z: 4.0)
if a == b {
    print("These two vectors are equivalent.")
}

Hashable is synthesized under the same conditions — structs whose stored properties are all Hashable, and enums whose associated values are all Hashable (or that have none). That’s what lets your own types become Set members and Dictionary keys, from #4.

Comparable is synthesized for enumerations without a raw value; if cases carry associated values, those must be Comparable too. Source order defines the ordering — earlier cases are “less than” later ones:

enum SkillLevel: Comparable {
    case beginner
    case intermediate
    case expert(stars: Int)
}
var levels = [SkillLevel.intermediate, SkillLevel.beginner,
              SkillLevel.expert(stars: 5), SkillLevel.expert(stars: 3)]
for level in levels.sorted() {
    print(level)
}
// beginner
// intermediate
// expert(stars: 3)
// expert(stars: 5)

Defining < once buys you <=, >, and >= for free, because Comparable provides those on top of the one operator you (or the compiler) supply.

Collections of protocol types

Because a protocol is a type, you can store mixed concrete types in one array as long as they share a protocol. This is the existential array from earlier, put to work:

let things: [any TextRepresentable] = [game, d12, simonTheHamster]

for thing in things {
    print(thing.textualDescription)
}

Inside the loop, thing is statically any TextRepresentable — not DiceGame, Dice, or Hamster, even though that’s what each box really holds. You can call textualDescription because the protocol guarantees it; reaching for anything specific to the concrete type would require a cast.

Protocol inheritance

A protocol can inherit other protocols, adding requirements on top. The syntax mirrors class inheritance, but you can list several parents:

protocol PrettyTextRepresentable: TextRepresentable {
    var prettyTextualDescription: String { get }
}

Anything adopting PrettyTextRepresentable must satisfy both its own prettyTextualDescription requirement and the inherited textualDescription. The child can lean on the parent’s guarantee — a PrettyTextRepresentable implementation can call textualDescription, knowing it’s always there.

Class-only protocols with AnyObject

By default any kind of type can adopt a protocol. To restrict adoption to classes only, inherit from AnyObject:

protocol SomeClassOnlyProtocol: AnyObject, SomeInheritedProtocol {
    // class-only protocol definition goes here
}

A struct or enum that tries to adopt it is a compile-time error. This is the rule that made DiceGame.Delegate: AnyObject work: only reference types can be held weak, so a delegate protocol that wants a weak reference must be class-only.

Protocol composition with &

Sometimes one protocol isn’t a strong enough requirement — you need a value that conforms to several at once. Combine them with & into a protocol composition:

protocol Named {
    var name: String { get }
}
protocol Aged {
    var age: Int { get }
}
struct Person: Named, Aged {
    var name: String
    var age: Int
}
func wishHappyBirthday(to celebrator: Named & Aged) {
    print("Happy birthday, \(celebrator.name), you're \(celebrator.age)!")
}
let birthdayPerson = Person(name: "Malcolm", age: 21)
wishHappyBirthday(to: birthdayPerson)
// Happy birthday, Malcolm, you're 21!

Named & Aged means “any type conforming to both.” It defines no new named protocol — it’s a temporary, on-the-spot combination. A composition may also include one class type, to require a particular superclass alongside the protocols:

func beginConcert(in location: Location & Named) {
    print("Hello, \(location.name)!")
}

Here location must be a subclass of Location and conform to Named — capability and ancestry, required together.

Checking conformance with is and as?

The is and as? operators — which we met catching errors by type — also test protocol conformance at runtime, with identical syntax:

• is returns true if the instance conforms to the protocol.
• as? returns an optional of the protocol type — nil if the instance doesn’t conform.
• as! force-casts and traps if the instance doesn’t conform.

protocol HasArea {
    var area: Double { get }
}

class Circle: HasArea {
    let pi = 3.1415927
    var radius: Double
    var area: Double { return pi * radius * radius }
    init(radius: Double) { self.radius = radius }
}
class Country: HasArea {
    var area: Double
    init(area: Double) { self.area = area }
}
class Animal {
    var legs: Int
    init(legs: Int) { self.legs = legs }
}

let objects: [AnyObject] = [
    Circle(radius: 2.0),
    Country(area: 243_610),
    Animal(legs: 4),
]

for object in objects {
    if let objectWithArea = object as? HasArea {
        print("Area is \(objectWithArea.area)")
    } else {
        print("Something that doesn't have an area")
    }
}
// Area is 12.5663708
// Area is 243610.0
// Something that doesn't have an area

Circle, Country, and Animal share no base class — yet as? HasArea sorts the conformers from the rest at runtime. This is the same if let optional binding from #11, here unwrapping the result of a protocol cast. The objects aren’t changed; they’re just viewed through the narrow HasArea window for the duration of the binding.

Protocol extensions: default implementations

This is where protocols stop being mere checklists and become Swift’s defining feature. You can extend a protocol itself to provide method and property implementations — behavior that every conforming type gets for free, without writing anything.

extension RandomNumberGenerator {
    func randomBool() -> Bool {
        return random() > 0.5
    }
}

Every RandomNumberGenerator now has randomBool(), built on the random() it already promised — and no conformer had to lift a finger:

let generator = LinearCongruentialGenerator()
print(generator.random())     // 0.3746499199817101
print(generator.randomBool()) // true

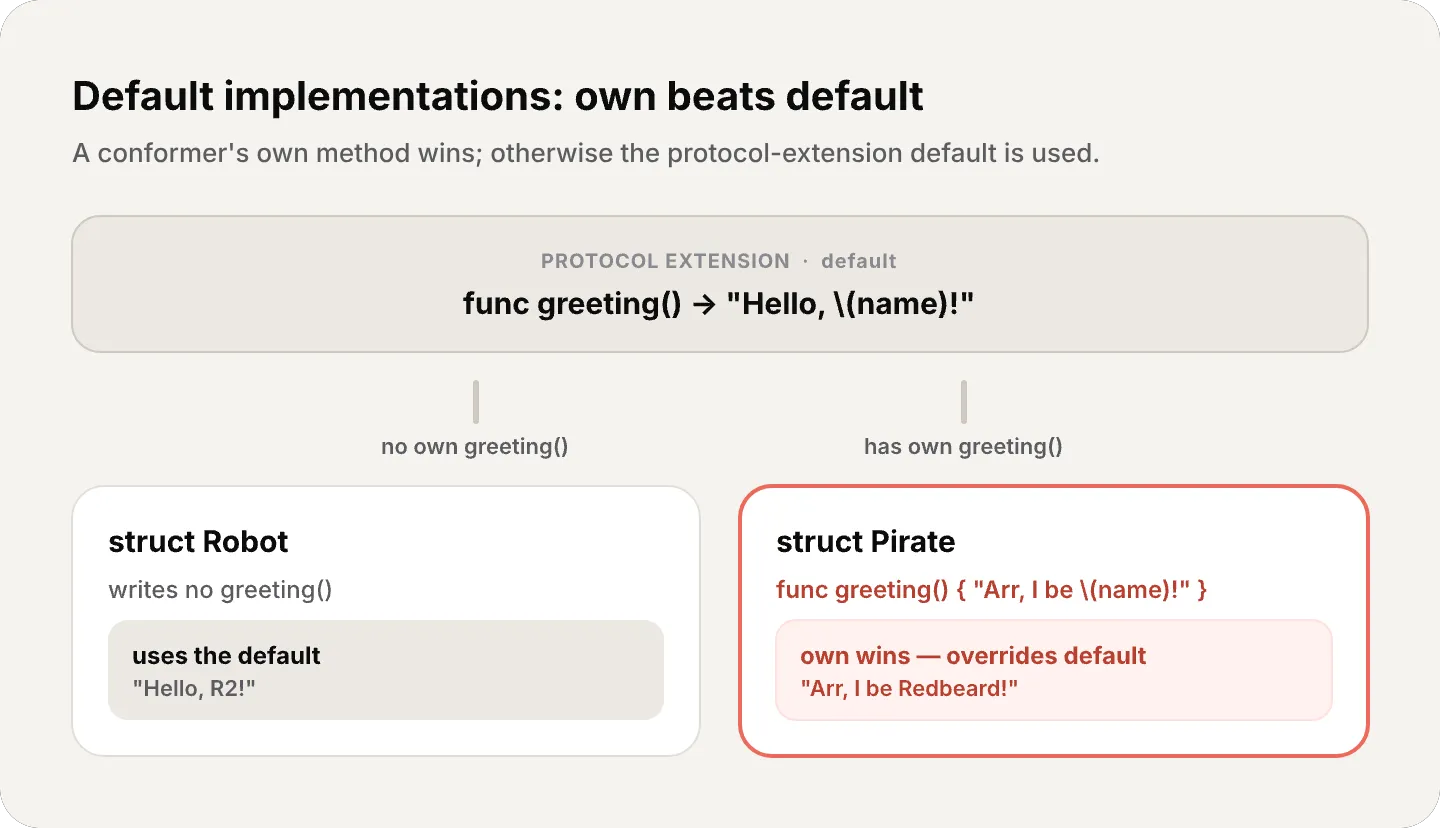

So a protocol can both declare a requirement and default it — letting conformers override only when they have something better to offer:

extension PrettyTextRepresentable {
    var prettyTextualDescription: String {
        return textualDescription
    }
}

This is the heart of protocol-oriented programming: shared behavior lives on the protocol, attached to a capability rather than a place in a class tree. Where inheritance from #10 forces shared code down a single line of descent, a protocol extension spreads it sideways to every conformer, related or not.

Constrained extensions with where

You can restrict a protocol extension so its members only appear when conforming types meet extra constraints — written, again, with a generic where clause:

extension Collection where Element: Equatable {
    func allEqual() -> Bool {
        for element in self {
            if element != self.first {
                return false
            }
        }
        return true
    }
}

allEqual() exists on any Collection from #4, but only when its Element is Equatable — because the body needs != to compare elements. Arrays of integers qualify:

let equalNumbers = [100, 100, 100, 100, 100]
let differentNumbers = [100, 100, 200, 100, 200]

print(equalNumbers.allEqual())      // true
print(differentNumbers.allEqual())  // false

This constrained-extension pattern is everywhere in the standard library — it’s how Array gets sorted() only when its elements are Comparable, and contains(_:) only when they’re Equatable. A capability that depends on another capability, expressed precisely.

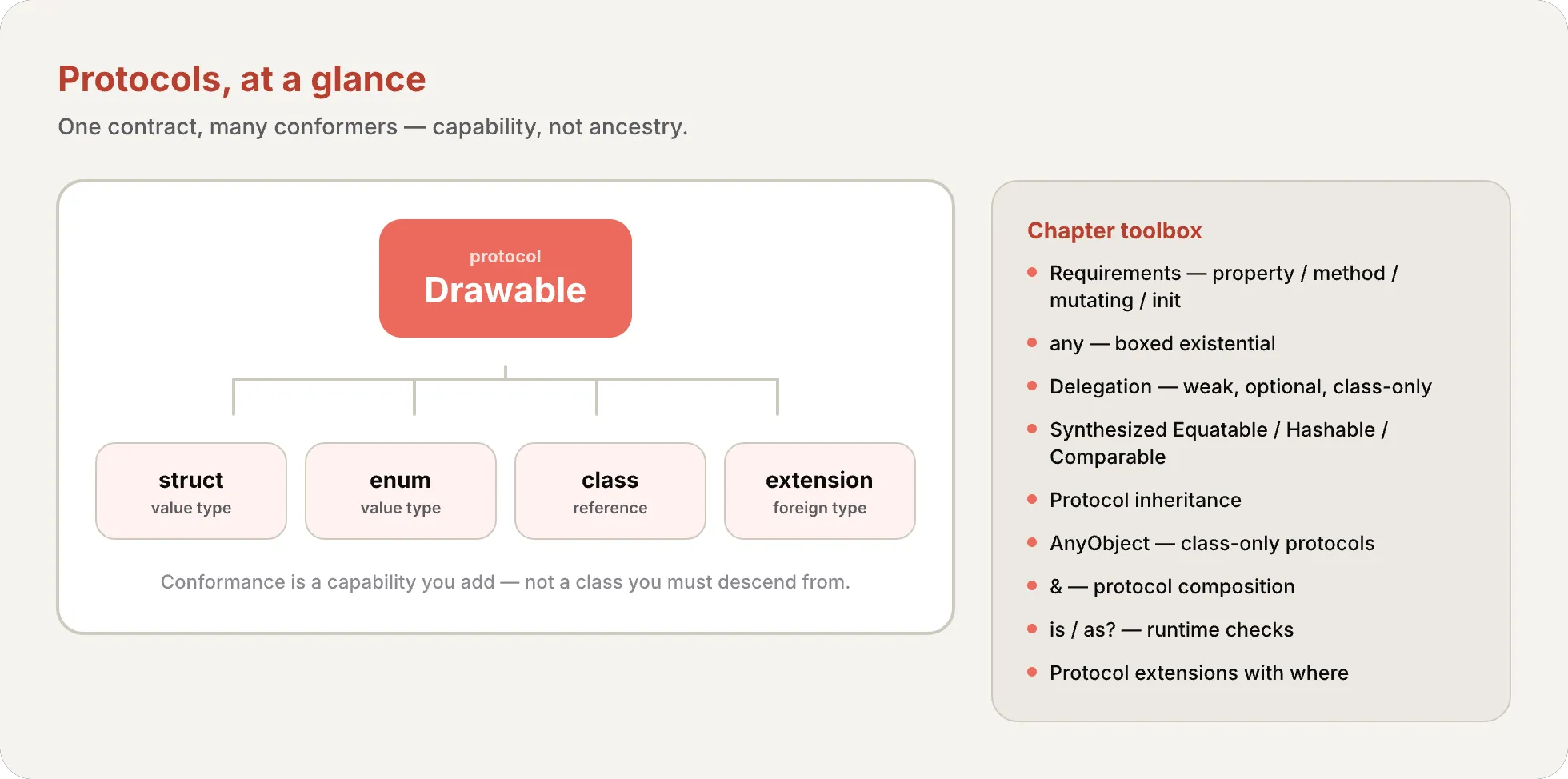

Recap

• Protocol — a contract of requirements (properties, methods, initializers) a conforming type must satisfy; about capability, not identity
• Requirements — properties ({ get } / { get set }), methods (signature only), mutating methods (to let value types in), and init (classes mark it required)
• Protocols as types — any ProtocolName is a boxed existential holding any conforming type at runtime, at the cost of a box
• Delegation — a type hands off work to a weak, optional, class-only delegate protocol, calling it through optional chaining
• Conformance via extensions — add it retroactively, conditionally with where, or declare it with an empty extension; conformance is always explicit
• Synthesized conformance — Equatable, Hashable, and Comparable are auto-generated for simple structs and enums in the original file
• Protocol inheritance — a protocol can inherit others and add requirements; AnyObject makes a protocol class-only
• Composition (&) — A & B requires conformance to several protocols (plus optionally one superclass) at once
• is / as? — check and cast protocol conformance at runtime, exactly like type casting
• Protocol extensions — default implementations shared sideways to all conformers; where constrains them to qualifying types — the backbone of protocol-oriented Swift

Challenges

Open a playground and try each one before opening the solution.

Challenge 1: Predict the toggle

A value type satisfies a mutating protocol requirement. What does this print?

protocol Togglable {
    mutating func toggle()
}
enum OnOffSwitch: Togglable {
    case off, on
    mutating func toggle() {
        switch self {
        case .off: self = .on
        case .on: self = .off
        }
    }
}
var lightSwitch = OnOffSwitch.off
lightSwitch.toggle()
lightSwitch.toggle()
lightSwitch.toggle()
print(lightSwitch)

on

Challenge 2: Fix the existential

This snippet won’t compile. Find the one mistake and fix it so the loop runs.

protocol Shape {
    func draw() -> String
}
struct Triangle: Shape {
    var size: Int
    func draw() -> String { return "Triangle" }
}
let shapes: [any Shape] = [Triangle(size: 3), Triangle(size: 7)]
for shape in shapes {
    print(shape.size)
}

for shape in shapes {
    print(shape.draw())
}
// Triangle
// Triangle

Challenge 3: Write a default implementation

Define a protocol Greeter with a single name: String { get } requirement and a protocol extension giving every conformer a greeting() -> String method that returns "Hello, <name>!". Then make a Robot that uses the default and a Pirate that overrides greeting() to return "Arr, I be <name>!".

protocol Greeter {
    var name: String { get }
}
extension Greeter {
    func greeting() -> String {
        return "Hello, \(name)!"
    }
}
struct Robot: Greeter {
    var name: String
}
struct Pirate: Greeter {
    var name: String
    func greeting() -> String {
        return "Arr, I be \(name)!"
    }
}
print(Robot(name: "R2").greeting())      // Hello, R2!
print(Pirate(name: "Redbeard").greeting()) // Arr, I be Redbeard!

What’s next

We kept bumping into one wall: any Shape and [any TextRepresentable] box their values at a runtime cost, and a protocol with an associatedtype (which we deliberately skipped here) can’t even be used as any without limits. The answer is Generics — the next article — where the caller picks one concrete type, the compiler specializes the code, and the box disappears. We’ve been writing where Element: Equatable and Result<Success, Failure> all along; #14 finally explains the machinery. After that, #15 covers opaque types (some) — the third door alongside any and generics.

See you next week.

References

• The Swift Programming Language — Protocols
• The Swift Programming Language — Opaque and Boxed Protocol Types
• The Swift Programming Language — Type Casting
• The Swift Programming Language — Extensions
