Swift from Zero to Expert #7: Enumerations — more than a list of cases

Raw values, associated values, recursive enums with indirect, and how the compiler picks the minimal memory representation.

In the previous article we discovered that closures are reference types that live on the heap when they escape. Today we shift gears entirely: enumerations are value types that the compiler optimizes so aggressively they can be represented with just 2 bits.

If you come from C or Java, you probably think of enums as a list of named integers. In Swift, an enum is a full algebraic type — with methods, computed properties, associated values of different types, protocol conformance, and even recursion. They’re one of the most expressive tools in the language, and understanding how the compiler represents them in memory will change how you design them.

A Swift enum is not a list of disguised integers — it’s a full algebraic type that the compiler can represent in as few as 2 bits.

The Swift bird organizing colorful blocks labeled as enum cases while the capybara watches

Defining an enum — goodbye to the disguised integer

The most basic form:

enum CompassPoint {
    case north
    case south
    case east
    case west
}

Or on a single line:

enum CompassPoint {
    case north, south, east, west
}

The key insight: CompassPoint.north is not the integer 0. It’s a value of type CompassPoint:

var direction = CompassPoint.west
print(type(of: direction))  // CompassPoint — NOT Int


// When the type is already known, you can omit the enum name
direction = .east

By convention, Swift enums use singular names (Planet, not Planets) and cases start with lowercase (north, not North).

Pattern matching and exhaustiveness

Enums shine with switch — and here Swift adds something C never had: mandatory exhaustiveness.

func describe(_ point: CompassPoint) -> String {
    switch point {
    case .north:
        return "Going up"
    case .south:
        return "Going down"
    case .east:
        return "Going right"
    case .west:
        return "Going left"
    }
    // No `default` needed — the compiler knows you covered every case
}

When you don’t need to cover every case, use if case or guard case:

let heading = CompassPoint.north


// if case — useful when you only care about one case
if case .north = heading {
    print("Heading north!")
}


// guard case — for early exit
func navigate(_ point: CompassPoint) {
    guard case .north = point else {
        print("Not going north")
        return
    }
    print("Full speed ahead!")
}

CaseIterable — iterating over all cases

enum Beverage: CaseIterable {
    case coffee, tea, juice, water
}


print(Beverage.allCases.count)  // 4


for drink in Beverage.allCases {
    print(drink)
}
// coffee, tea, juice, water

This is extremely useful for generating menus, SwiftUI pickers, or iterating over configuration options. Note that CaseIterable can only be automatically synthesized when no case has associated values — because with associated values, the possible values would be infinite.

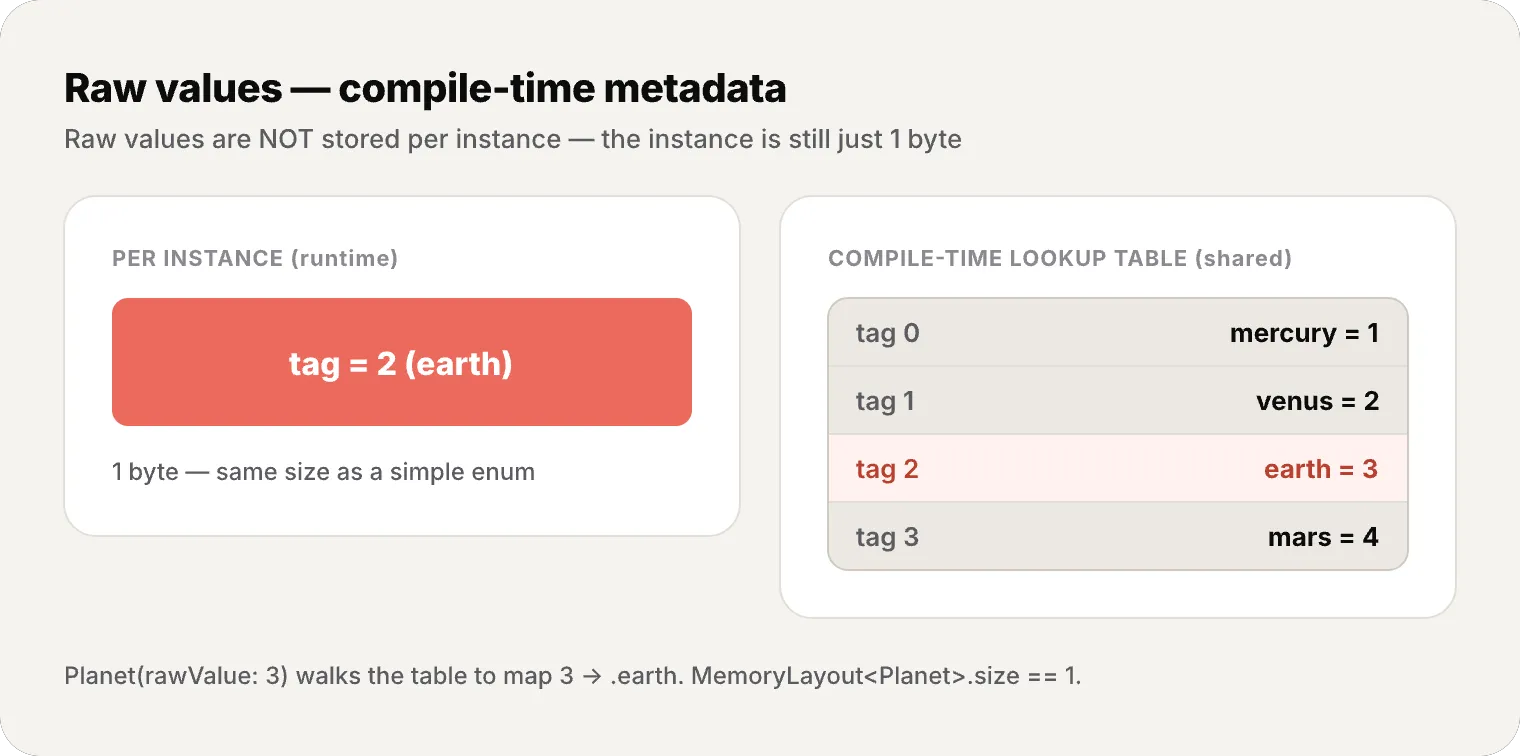

Raw values — a fixed value for each case

Integers with auto-increment

enum Planet: Int {
    case mercury = 1
    case venus        // 2 (auto)
    case earth        // 3 (auto)
    case mars         // 4 (auto)
    case jupiter      // 5 (auto)
    case saturn       // 6 (auto)
    case uranus       // 7 (auto)
    case neptune      // 8 (auto)
}

If you don’t assign an initial value, Swift starts at 0 for integers.

Implicit strings

enum HTTPMethod: String {
    case get       // rawValue = "get"
    case post      // rawValue = "post"
    case put       // rawValue = "put"
    case delete    // rawValue = "delete"
}


print(HTTPMethod.get.rawValue)  // "get"

For strings, the implicit raw value is the case name.

Failable initializer

Every enum with raw values gets a failable initializer:

let possiblePlanet = Planet(rawValue: 3)  // Optional<Planet> → .earth
let unknown = Planet(rawValue: 99)         // nil — doesn't exist

This connects directly with optionals, which we’ll explore in depth in article #11.

Associated values — each case tells its own story

This is where Swift enums completely separate themselves from any other language.

enum Barcode {
    case upc(Int, Int, Int, Int)
    case qrCode(String)
}


var productBarcode = Barcode.upc(8, 85909, 51226, 3)
productBarcode = .qrCode("ABCDEFGHIJKLMNOP")

A single type (Barcode) can store data in completely different shapes — 4 integers or a string. This is a sum type (or algebraic sum type) in type theory.

Extraction via pattern matching

switch productBarcode {
case .upc(let numberSystem, let manufacturer, let product, let check):
    print("UPC: \(numberSystem), \(manufacturer), \(product), \(check)")
case .qrCode(let code):
    print("QR: \(code)")
}


// Shorthand: if all associated values use let (or all use var)
switch productBarcode {
case let .upc(numberSystem, manufacturer, product, check):
    print("UPC: \(numberSystem), \(manufacturer), \(product), \(check)")
case let .qrCode(code):
    print("QR: \(code)")
}

A more practical example

enum NetworkResponse {
    case success(data: Data, response: HTTPURLResponse)
    case failure(Error)
    case loading(progress: Double)
}


func handle(_ response: NetworkResponse) {
    switch response {
    case .success(let data, let response) where response.statusCode == 200:
        print("OK — \(data.count) bytes")
    case .success(_, let response):
        print("Unexpected status: \(response.statusCode)")
    case .failure(let error):
        print("Error: \(error.localizedDescription)")
    case .loading(let progress) where progress > 0.9:
        print("Almost done! \(Int(progress * 100))%")
    case .loading(let progress):
        print("Loading: \(Int(progress * 100))%")
    }
}

Notice the where — you can filter within the same case to handle subcases. The combination of associated values + pattern matching + where clauses is incredibly powerful.

The capybara holding boxes of different sizes while the Swift bird explains the space each one takes

Recursive enums with indirect — when a case contains itself

What happens when an enum needs to refer to itself?

The classic example is an arithmetic expression:

indirect enum ArithmeticExpression {
    case number(Int)
    case addition(ArithmeticExpression, ArithmeticExpression)
    case multiplication(ArithmeticExpression, ArithmeticExpression)
}

You can put indirect on the whole enum or only on the recursive cases:

enum ArithmeticExpression {
    case number(Int)
    indirect case addition(ArithmeticExpression, ArithmeticExpression)
    indirect case multiplication(ArithmeticExpression, ArithmeticExpression)
}

And evaluate recursively:

func evaluate(_ expression: ArithmeticExpression) -> Int {
    switch expression {
    case .number(let value):
        return value
    case .addition(let left, let right):
        return evaluate(left) + evaluate(right)
    case .multiplication(let left, let right):
        return evaluate(left) * evaluate(right)
    }
}


// (5 + 4) × 2
let five = ArithmeticExpression.number(5)
let four = ArithmeticExpression.number(4)
let sum = ArithmeticExpression.addition(five, four)
let product = ArithmeticExpression.multiplication(sum, .number(2))


print(evaluate(product))  // 18

The Swift bird with a box containing another box, with an arrow pointing to the heap

Remember from article #1 that value types live on the stack? A recursive enum needs to break that rule — the compiler inserts a heap pointer for cases marked as indirect. Without it, the compiler couldn’t calculate the type’s size: ArithmeticExpression would contain ArithmeticExpression which would contain ArithmeticExpression… infinitely.

Methods, computed properties, and initializers

Enums in Swift aren’t just constant containers — they’re full first-class types:

enum Planet: Int, CaseIterable {
    case mercury = 1, venus, earth, mars, jupiter, saturn, uranus, neptune


    /// Surface gravity relative to Earth
    var surfaceGravity: Double {
        switch self {
        case .mercury: return 0.378
        case .venus:   return 0.907
        case .earth:   return 1.0
        case .mars:    return 0.377
        case .jupiter: return 2.36
        case .saturn:  return 0.916
        case .uranus:  return 0.889
        case .neptune: return 1.12
        }
    }


    /// Weight on this planet given weight on Earth
    func weight(onEarth earthWeight: Double) -> Double {
        return earthWeight * surfaceGravity
    }
}


let myWeight = Planet.mars.weight(onEarth: 70)
print(myWeight)  // 26.39 kg on Mars

Mutating methods

Enums are value types, so methods that change self need mutating:

enum TrafficLight {
    case red, yellow, green


    mutating func next() {
        switch self {
        case .red:    self = .green
        case .green:  self = .yellow
        case .yellow: self = .red
        }
    }
}


var light = TrafficLight.red
light.next()  // .green
light.next()  // .yellow
light.next()  // .red

Protocols and automatic synthesis

The Swift compiler can automatically synthesize conformance to several protocols for enums:

// Equatable and Hashable — automatic for enums WITHOUT associated values
enum Direction: Hashable {
    case north, south, east, west
}


let directions: Set<Direction> = [.north, .south]  // Works via synthesis


// With associated values — automatic IF all types conform
enum Result: Equatable {
    case success(Int)       // Int is Equatable ✓
    case failure(String)    // String is Equatable ✓
}


Result.success(42) == Result.success(42)  // true
Result.success(42) == Result.failure("err")  // false

Automatic Comparable (SE-0266)

enum Priority: Comparable {
    case low, medium, high, critical
}


let tasks: [Priority] = [.high, .low, .critical, .medium]
print(tasks.sorted())  // [.low, .medium, .high, .critical]
// Order follows declaration — the first case is the "smallest"

Codable with associated values (SE-0295)

Since Swift 5.5, the compiler synthesizes Codable for enums with associated values:

enum Barcode: Codable {
    case upc(Int, Int, Int, Int)
    case qrCode(String)
}


let code = Barcode.qrCode("ABCDEF")
let data = try JSONEncoder().encode(code)
// {"qrCode":{"_0":"ABCDEF"}}

Unlabeled parameters get generated keys (_0, _1). If you want custom keys, you can declare CodingKeys per case.

Exploring memory

Navigate through the interactive component to see how the memory layout changes based on the enum type:

⚡Interactive

How much memory does an enum use?

Explore how the memory layout changes based on the enum type.

Swift
enum Direction {
    case north   // tag: 00
    case south   // tag: 01
    case east    // tag: 10
    case west    // tag: 11
}

MemoryLayout<Direction>.size      // 1 byte
MemoryLayout<Direction>.stride    // 1 byte
MemoryLayout<Direction>.alignment // 1 byte
Memory Layout
Total: 1 byte
tag
1 byte— 2 bits used / 6 unused
Step 1/5A 4-case enum needs only 2 bits for the tag (discriminator): 00, 01, 10, 11. The compiler rounds up to 1 byte for alignment. The remaining 6 bits are unused. MemoryLayout<Direction>.size == 1.

The memory behind enums

Now let’s connect everything to our memory thread — the part that separates a developer who uses enums from one who understands them.

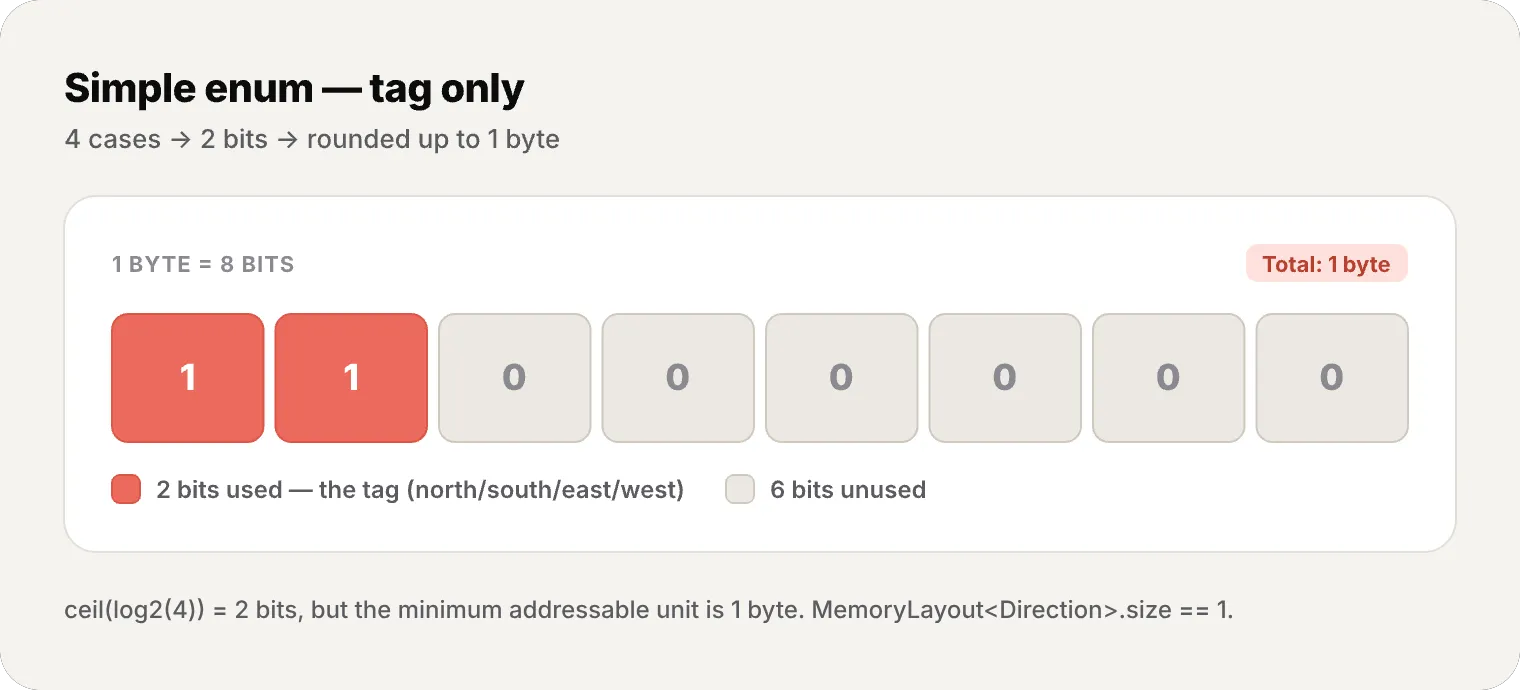

Minimal representation: tag bits

An enum without associated values or raw values stores only a tag (also called a discriminator) — a number identifying which case it is.

MemoryLayout<CompassPoint>.size  // 1 byte
// 4 cases → needs ceil(log2(4)) = 2 bits
// But the minimum addressable unit is 1 byte

The compiler chooses the smallest possible representation:

Tag size by number of cases
  • 2 cases → 1 bit, rounded to 1 byte
  • 3-4 cases → 2 bits, rounded to 1 byte
  • 5-256 cases → 3-8 bits, rounded to 1 byte
  • 257+ cases → 2 bytes
  • Empty enum (0 cases) → 0 bytes (uninhabitable type)

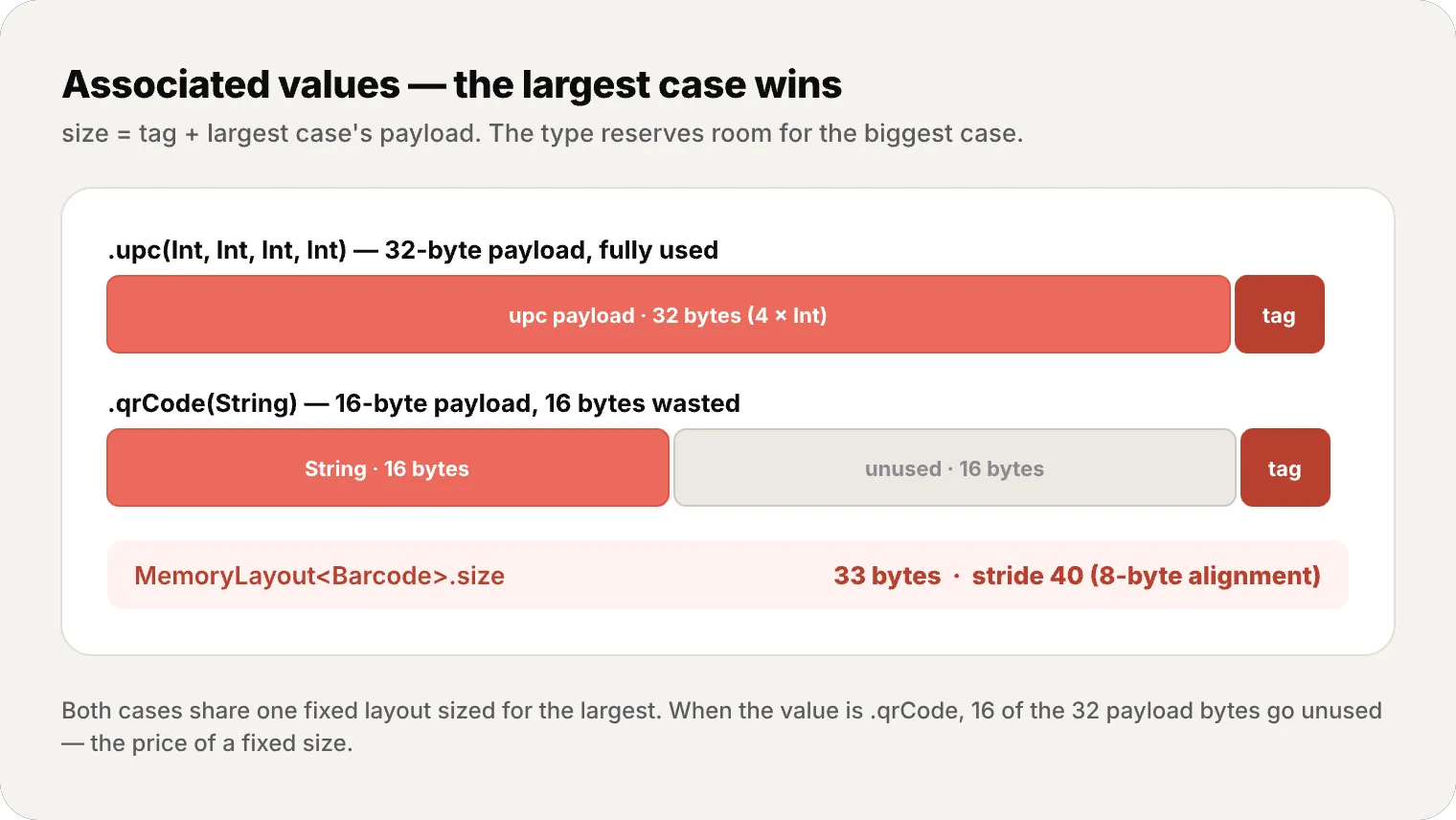

Associated values: the largest case wins

When the enum has associated values, the size is: tag + largest case’s payload.

enum Barcode {
    case upc(Int, Int, Int, Int)  // 4 × 8 = 32 bytes payload
    case qrCode(String)           // 16 bytes payload (String in Swift = 16 bytes inline)
}


MemoryLayout<Barcode>.size       // 33 bytes (32 payload + 1 tag)
MemoryLayout<Barcode>.stride     // 40 bytes (alignment to 8 bytes)

When Barcode is .qrCode, it uses 16 of the 32 payload bytes — the other 16 go unused. That’s the price of having a fixed size for the type.

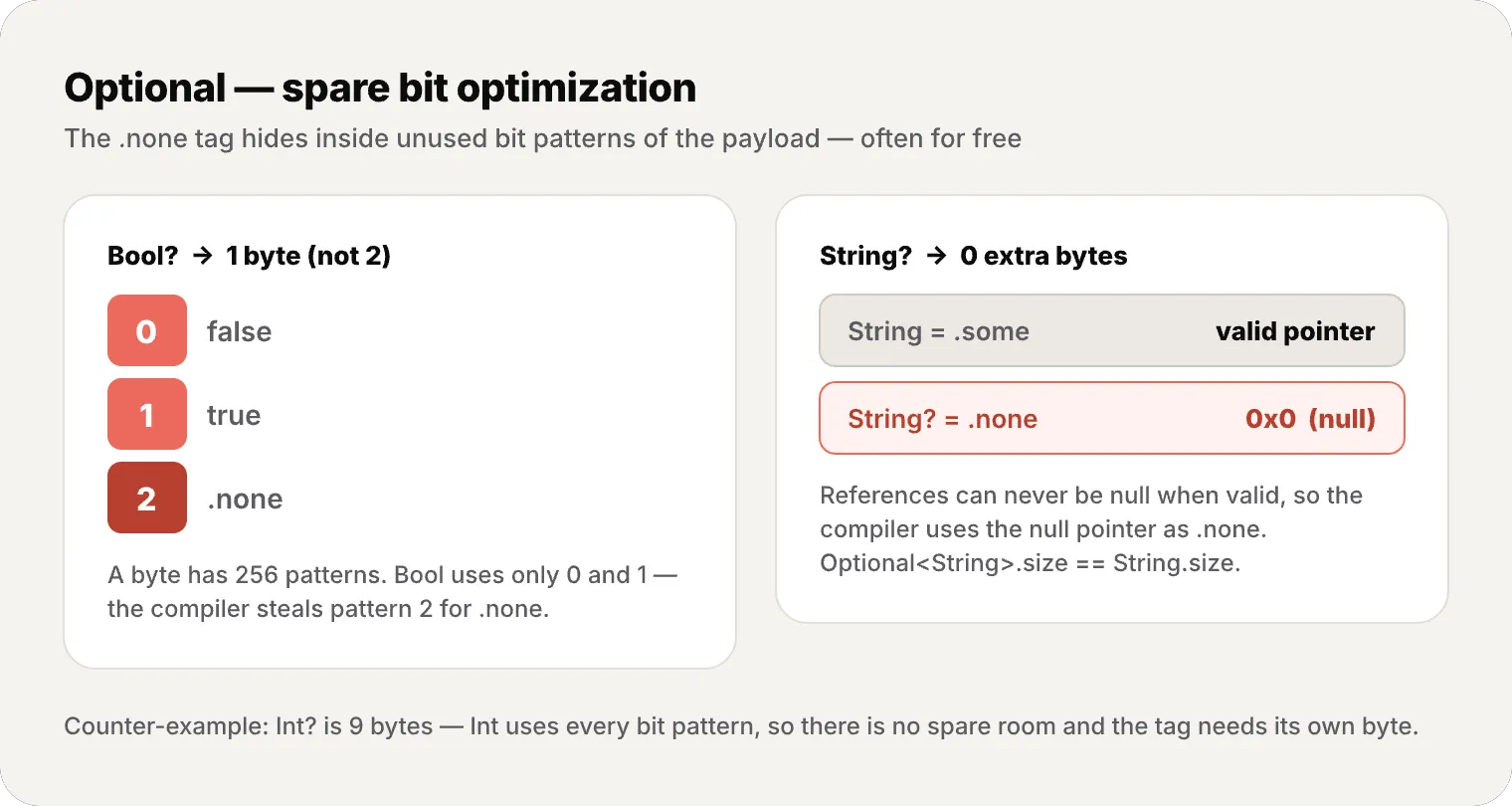

Spare bit optimization

This is the compiler’s most elegant optimization. Optional<Bool> should take 2 bytes (1 for Bool + 1 for the Optional tag), but it takes only 1 byte:

MemoryLayout<Bool>.size    // 1 byte
MemoryLayout<Bool?>.size   // 1 byte — not 2!

How? Bool only uses two bit patterns: 0 (false) and 1 (true). A byte has 256 possible patterns — 254 go unused. The compiler uses pattern 2 to represent .none. The tag “hides” in the spare bits of the payload.

For reference types (classes), it’s even better: Optional<AnyObject> needs no extra bytes because the compiler uses the null pointer (0x0) to represent .none. That’s why Optional<String>.size == String.size — the tag is free.

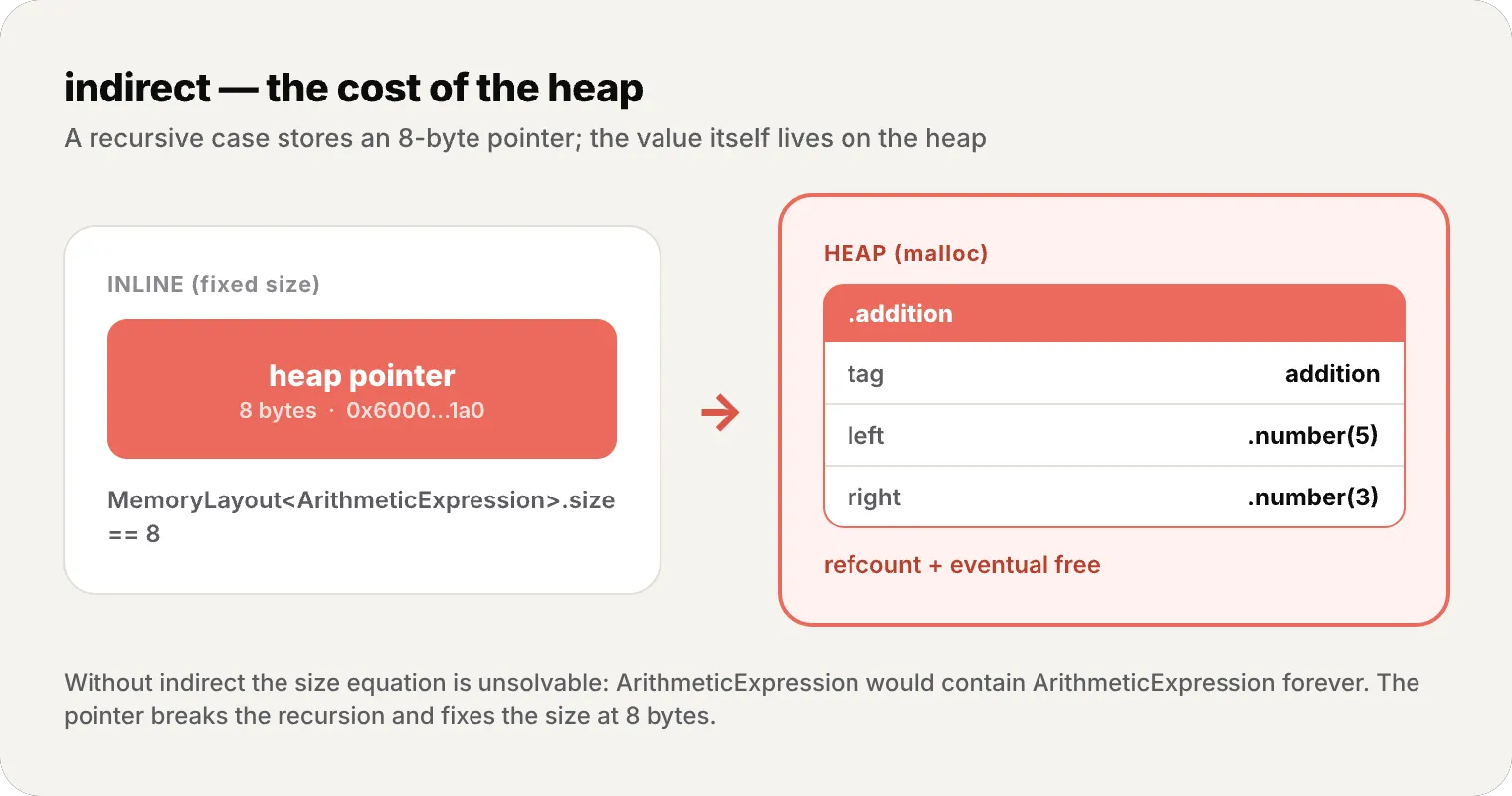

indirect: the cost of the heap

When an enum uses indirect, each recursive case stores an 8-byte pointer to the heap instead of the value directly:

MemoryLayout<ArithmeticExpression>.size  // 8 bytes (just the pointer)

Without indirect, the compiler would need to calculate: size of ArithmeticExpression = size of ArithmeticExpression + size of ArithmeticExpression + … — an unsolvable equation. The pointer breaks the recursion and fixes the size.

The cost: each recursive instance means a malloc to the heap, with its refcount and eventual free. It’s the same trade-off we saw with escaping closures in article #6.

The Swift compiler treats every bit as a scarce resource. A 4-case enum takes 1 byte. An Optional of a reference adds zero bytes. That obsession with efficiency isn’t accidental — it’s what makes Swift viable for embedded systems, wearables, and high-performance code.

Swift Evolution: advanced features

Enums continue evolving with each Swift version. These are the most important additions for advanced developers:

Noncopyable enums (~Copyable) — SE-0390

Since Swift 5.9, you can create enums that cannot be copied — useful for modeling exclusive resource ownership:

enum FileHandle: ~Copyable {
    case open(descriptor: Int32)
    case closed


    consuming func close() {
        // After consuming, the value no longer exists
        print("File closed")
    }
}


var handle = FileHandle.open(descriptor: 42)
handle.close()  // consumes the value
// handle is no longer usable here — the compiler guarantees it

@nonexhaustive — SE-0487

For evolving libraries, you can mark an enum as extensible:

@nonexhaustive public enum APIError {
    case unauthorized
    case notFound
    case serverError
    // Future cases won't break user code
}


// Users of your library must use @unknown default
switch error {
case .unauthorized: handleAuth()
case .notFound: show404()
case .serverError: retry()
@unknown default: handleUnknown()  // Catches future cases
}

@c — SE-0495 (Swift 6.3)

For C interoperability:

@c enum Color: CInt {
    case red
    case green
    case blue
}
// Exported as a C enum in the compatibility header

Recap

Today we covered one of Swift’s most versatile types:

  • Enums ≠ integers — they’re full value types with names, not disguised integers
  • Pattern matching — exhaustive switch with value binding and where, plus if case and guard case
  • CaseIterable — iterate over all cases with .allCases
  • Raw values — fixed value per case (String, Int), with failable initializer, compile-time metadata
  • Associated values — different data per case, extracted via pattern matching (sum types)
  • Recursive enums (indirect) — heap allocation to break infinite size recursion
  • Methods and properties — enums as first-class types, mutating to change self
  • Protocol synthesis — automatic Equatable, Hashable, Comparable, Codable
  • Memory — minimal tag bits, size = largest case, spare bit optimization, Optional is an enum
  • Swift Evolution — ~Copyable, @nonexhaustive, @c for the future

What’s next

In the next article we explore Structs vs Classes — the decision that defines your app’s architecture. We’ll see value semantics vs reference semantics, why structs live on the stack and classes on the heap, memberwise initializers, and why Apple recommends structs by default. After understanding enums as value types, it’s the perfect time to compare the other two players.

See you next week.

Swift enumerations are full algebraic types — each case is a value with meaning, not a disguised integer. And the compiler knows it: it picks the minimal representation so your enum uses exactly the bytes it needs, not one more.

References

Related
